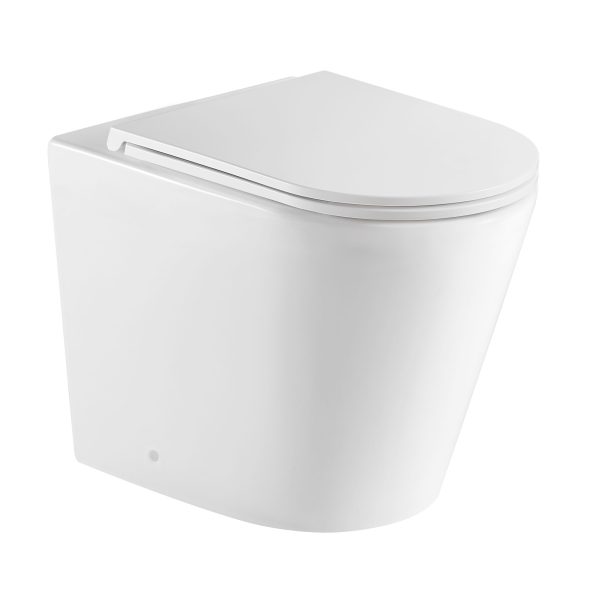

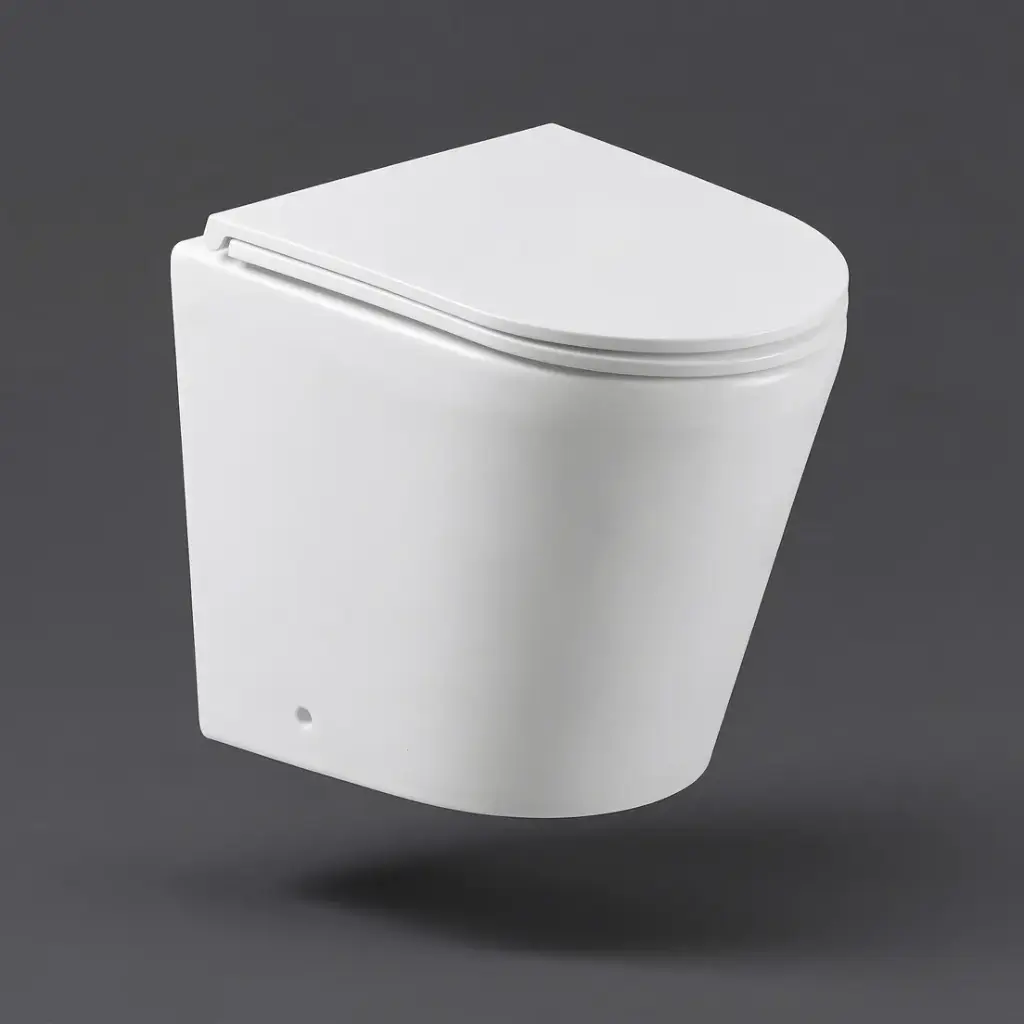

Berlin99 Gloss White Floor-Mount Conceal System Toilet Pan
A gloss white vitreous china floor-mount toilet pan featuring rimless tornado flush technology. Rated WELS 4 Star with dual flush options.
Size
580 x 360 x 430mm
Installation
Floor Mount
Material
Vitreous China
Finish
Gloss White
Quick check before ordering
Confirm S-trap (95-115mm) or P-trap (180mm) configuration matches your plumbing.
Verify compatible conceal cistern dimensions before installation.
Confirm pan height of 430mm fits under any above-pan clearance.
Check cabinet or surround clearance for the 580mm depth.
Use a licensed plumber for installation.
What is included
| Included | Toilet Pan |
|---|---|
| Not included | Installation service and site preparation are not included unless stated separately. |
| Best for | Bathroom installations using a conceal cistern system where a floor-mount pan is preferred. |
Measure before you buy
- Measure the set-out from the wall to confirm S-trap or P-trap fit.
- Check compatible conceal cistern dimensions.
- Confirm pan height of 430mm fits under any above-pan clearance.
- Verify cabinet or surround clearance for the 580mm depth.
- Use a licensed installer for final fitting.
Complete specifications
| Product type | Floor-Mount Conceal System Toilet Pan |
|---|---|
| SKU | 50337 |
| Code | 50337 |
| Size | 580 x 360 x 430mm |
| Material | Vitreous China |
| Colour / finish | Gloss White |
| Mounting | Floor Mount |
| Barcode | 50337 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Clean the vitreous china surface with a non-abrasive mild cleaner.
- Avoid acidic or harsh chemical cleaners on the glaze.
- Do not use the seat as a step or place heavy weight on it.
- Check the dual-flush mechanism periodically for smooth operation.
- Use a licensed plumber for any pan re-seating or resealing.
FAQ
Does this toilet include the conceal cistern?
No. The conceal cistern is not included. Compatible in-wall cisterns are listed separately as matching accessories.
Can this pan connect to both S-trap and P-trap plumbing?
Yes. It supports S-trap set-out 95-115mm and P-trap 180mm. Confirm your plumbing configuration before ordering.
What flush type does this toilet use?
It uses rimless tornado flush technology with a dual-flush of 4.5L full flush and 3L half flush, rated WELS 4 Star.
Specifications
| Color | Gloss White |
