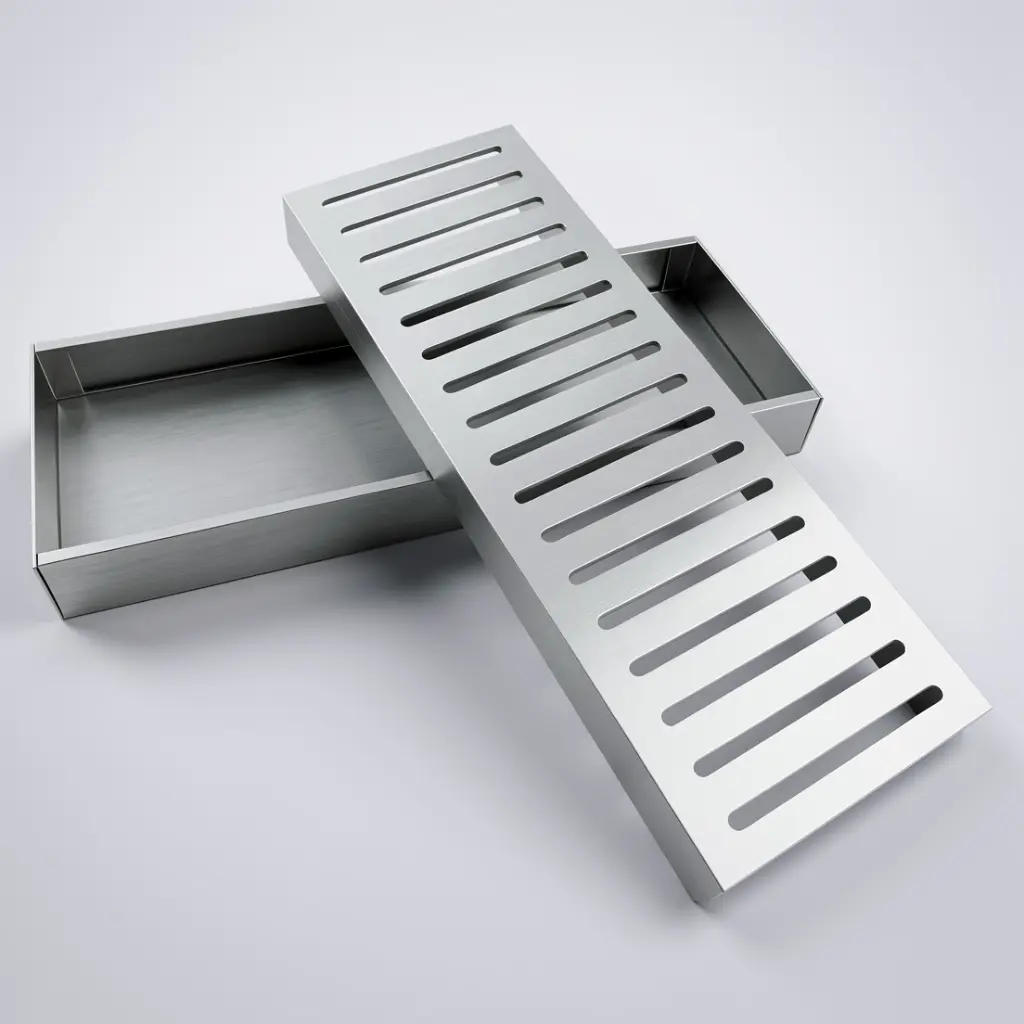

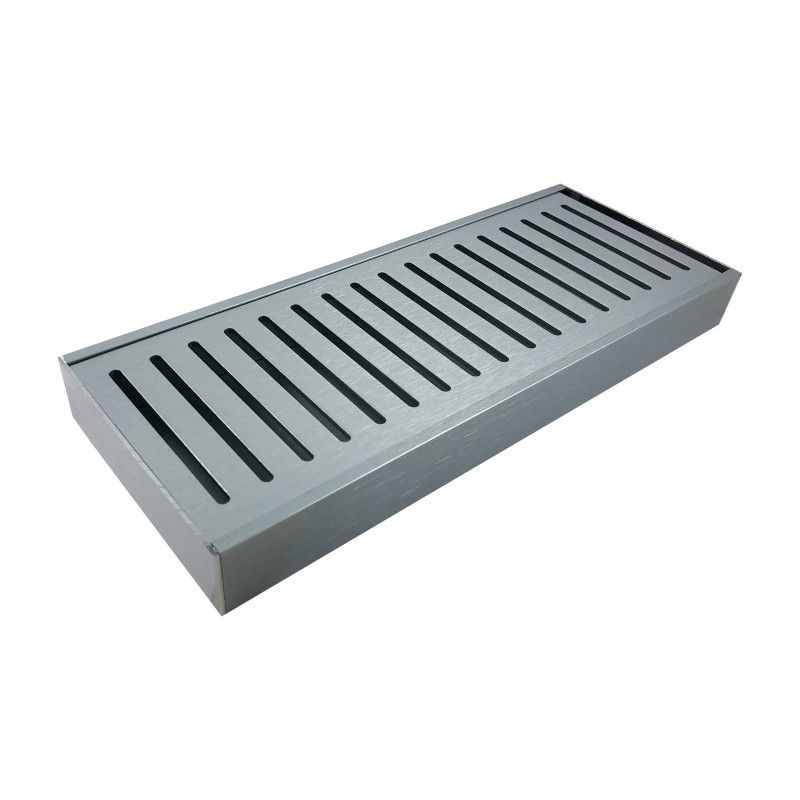

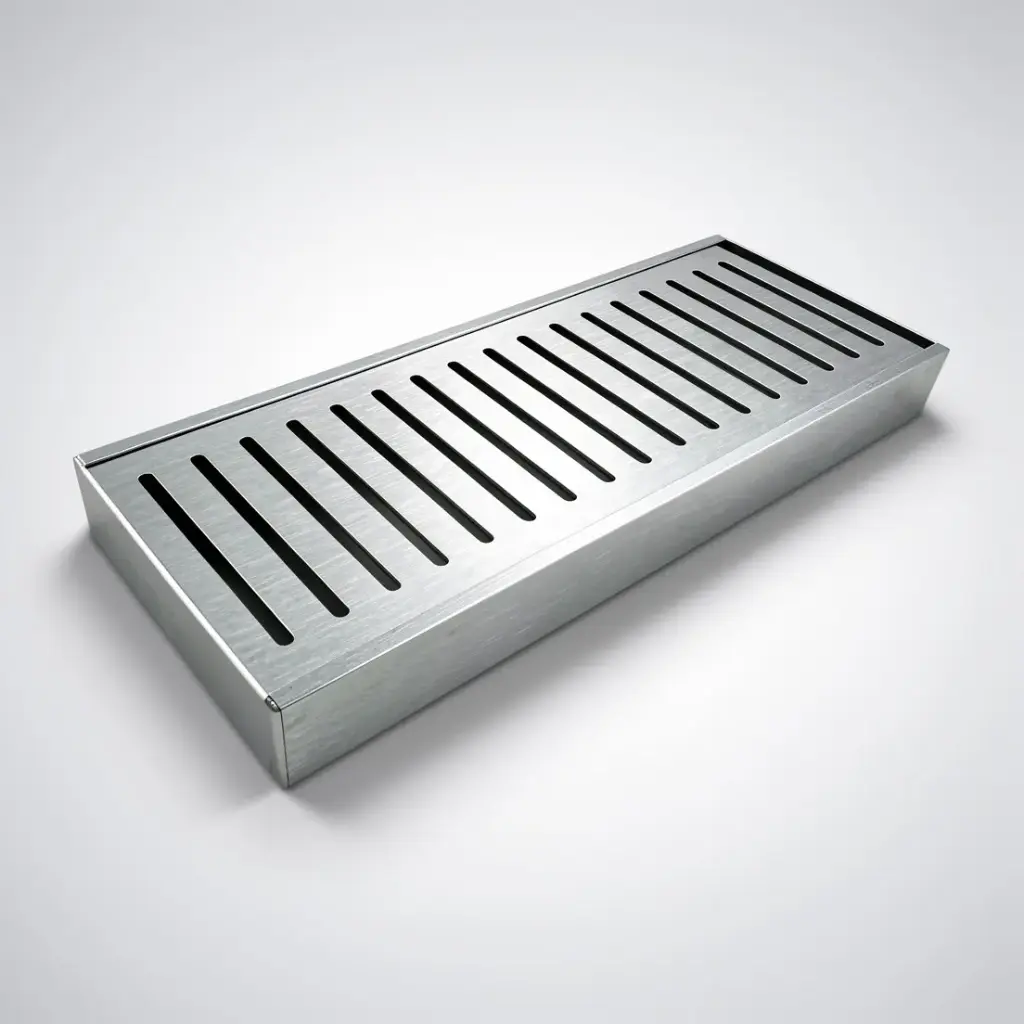

Lauxes Aluminium Standard Floor Grate Drain
A versatile, custom-length aluminium floor grate in chrome. Suitable for both indoor and outdoor drainage applications.
Size
300-5600 x 100 x 26mm
Material
Aluminium
Finish
Chrome
SKU / Code
41457 / 41457
Quick check before ordering
Confirm the waste outlet diameter (40, 50, 72 or 80mm) matches your plumbing.
Verify the 100mm width fits your available floor space.
Measure the planned length and allow for end caps when cutting.
Check if the installation is indoor or outdoor.
What is included
| Included | Floor grate unit |
|---|---|
| Not included | Installation service and site preparation are not included unless stated separately. |
| Best for | Indoor and outdoor floor drains where a standard-profile aluminium grate in chrome finish is preferred. |
Measure before you buy
- Measure total drain length; cut the bottom tray 3mm shorter than desired length to allow end caps to fit.
- Cut the top grate 1mm shorter than the bottom tray for easy roll-in.
- Confirm 100mm width clearance.
- Account for 26mm height when planning floor levels.
- Drill the waste outlet hole using a bimetal hole saw.
Complete specifications
| Product type | Standard floor grate drain |
|---|---|
| SKU | 41457 |
| Code | 41457 |
| Size | 300-5600 x 100 x 26mm |
| Material | Aluminium |
| Colour / finish | Chrome |
| Barcode | 41457 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Remove the top grate regularly to clean the waste channel.
- Rinse the grate to prevent soap scum or debris buildup.
- Avoid abrasive or acidic cleaners on chrome surfaces.
- Inspect for blockages after outdoor installation to clear debris.
FAQ
Can I cut this grate to a custom length?
Yes. Use a compound mitre saw with a multi-material blade (80 tooth or more). Cut the bottom tray 3mm shorter than the desired length, then cut the top grate 1mm shorter than the tray.
What waste outlet sizes does this grate suit?
The grate accommodates 40, 50, 72 and 80mm waste outlets. The waste can be positioned anywhere along the bottom tray.
How is the grate cleaned?
The system features an easy roll-out design, allowing the top grate to be removed quickly for cleaning and maintenance of the waste channel.
Specifications
| Color | Chrome |
